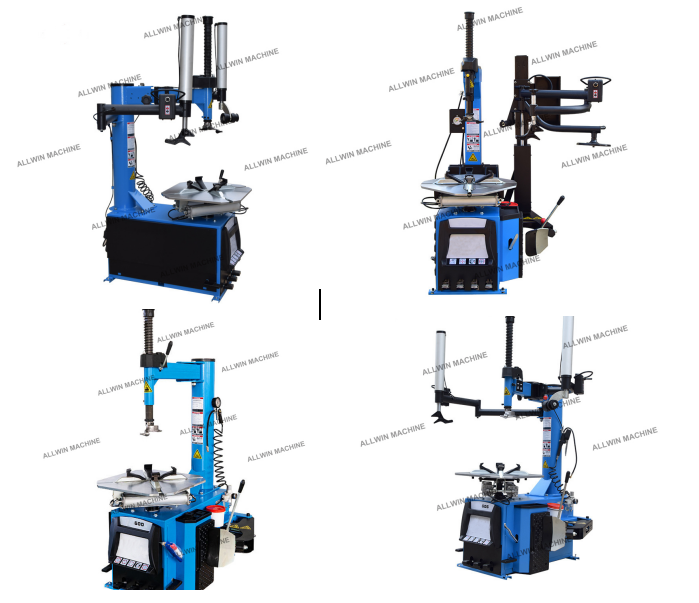

Semi-automatic Tire Changer
model AW-bt600 AW-bt606 AW-bt606B AW-bt609 Inside clamp 12-24" 12-24" 12-24" 12-24"
|
model |
AW-bt600 |
AW-bt606 |
AW-bt606B |
AW-bt609 |
|
Inside clamp |
12-24" |
12-24" |
12-24" |
12-24" |
|
Outside Clamp |
10-22" |
12-22" |
12-22" |
10-22" |
|
Max. Wheel Diameter |
1,050mm |
1,050mm |
1,050mm |
1,050mm |
|
Wheel Width |
4-13" |
4-13" |
4-13" |
4-13" |
|
Voltage |
110V/220V/380V |
110V/220V/380V |
110V/220V/380V |
110V/220V/380V |
|
Net/Gross Weight |
200kgs/240kgs |
200kgs/245kgs |
240kgs/270kgs |
340kgs/420kgs |
|
Packing Dimension |
1,150x920x930mm |
1,200x900x1000mm |
1,150x920x930mm |
1,230x1000x1800mm |

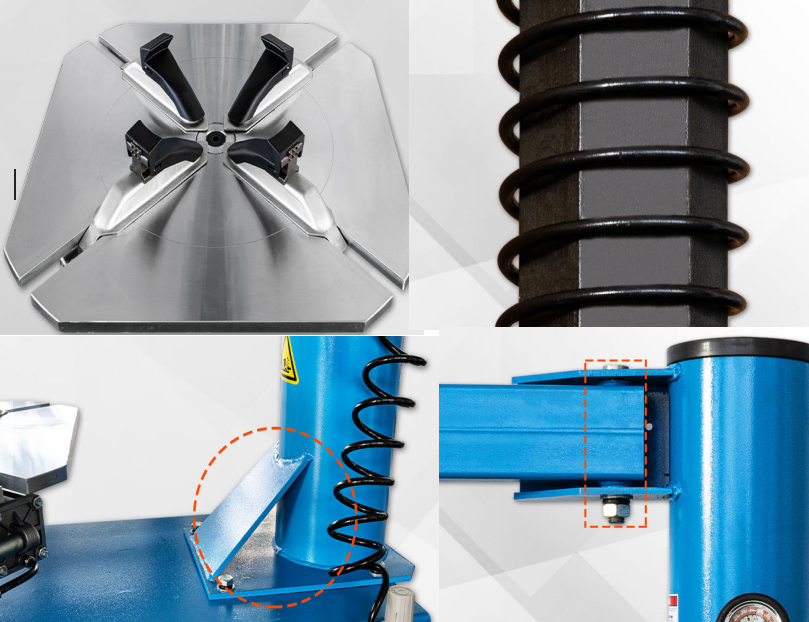

Detail display

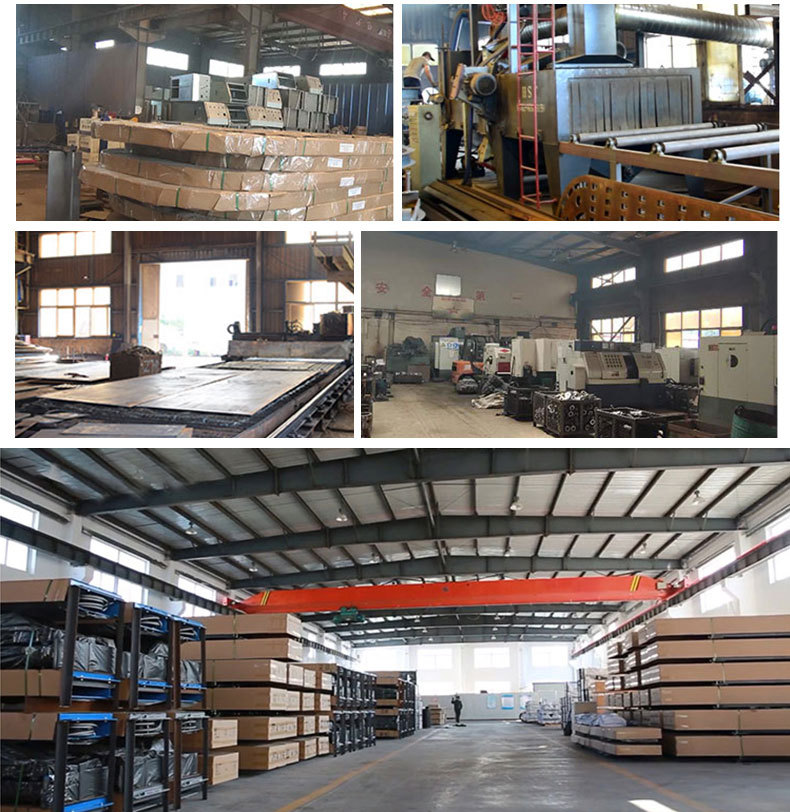

Production workshop
