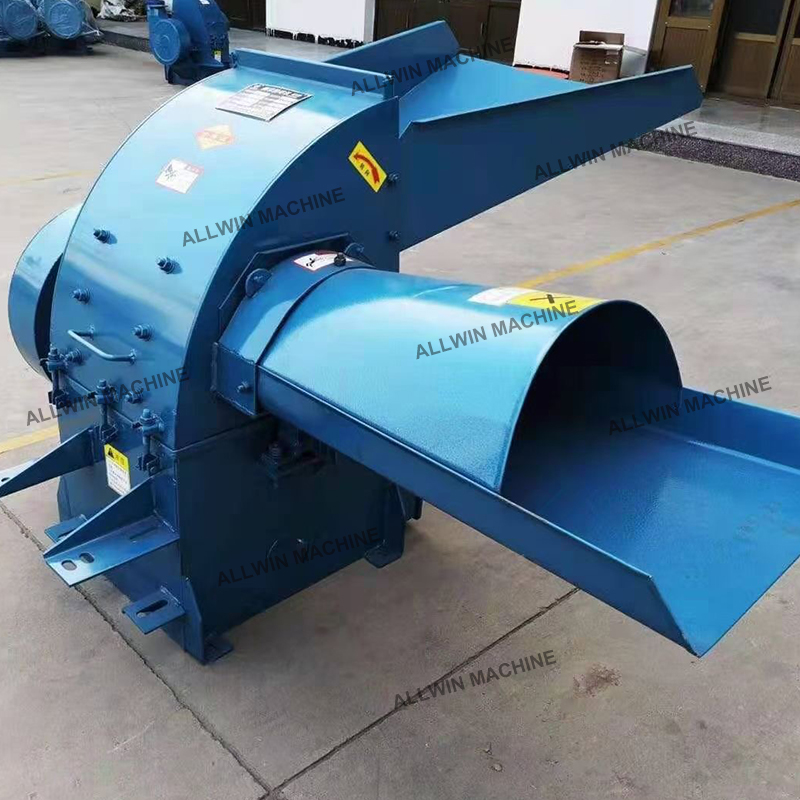

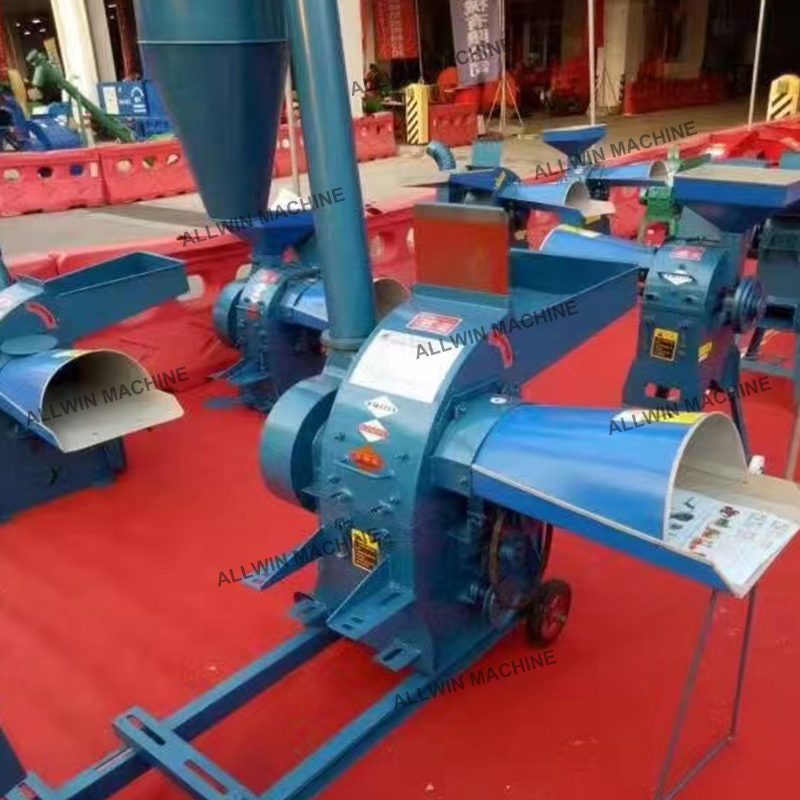

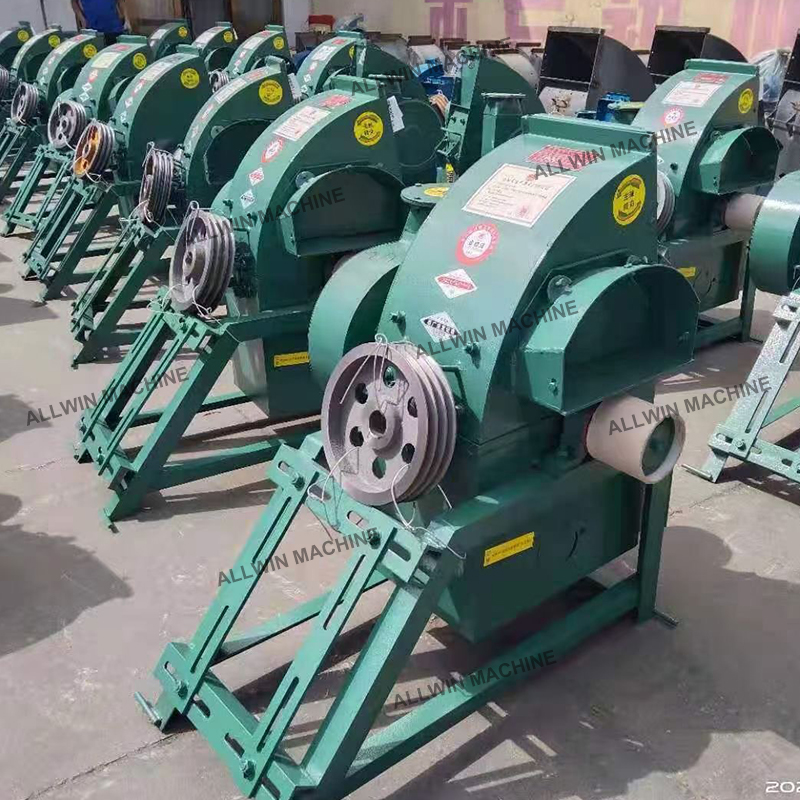

Wood shredder factory direct sales
It integrates slicing and crushing. It can cut branches and branches with a diameter of 1-20 cm. It can also be used for cutting fibrous stalk-like materials such as bamboo, thatch, corn stalk, and sorghum stalk. Model T/H Power/kw
Working principle of sawdust machine:
The dual crushing functions of blade cutting, high-speed air impact and collision are integrated, and
the fine material sorting process can be completed at the same time. During the cutting and crushing
process of the blade, the rotor generates a high-speed airflow, which rotates with the cutting direction
of the blade, and the material is accelerated in the airflow, and repeated impact causes the material to
be double crushed at the same time, which accelerates the crushing rate of the material.
It integrates slicing and crushing. It can cut branches and branches with a diameter of 1-20 cm. It can
also be used for cutting fibrous stalk-like materials such as bamboo, thatch, corn stalk, and sorghum stalk.
Model
T/H
Power/kw
Weight/kg
Spindle speed
Cutter diameter/mm
Number of blades
AWFS-400
0.8-1
7.5-11
200
1500
450
4
AWFS-500
1-1.5
11-15
320
1500
500
4
AWFS-600
1.5-2
18.5-22
420
1500
600
4
AWFS-800
3-6
22-30
550
480
800
4
AWFS-1000
5-8
45
800
550
950
4
AWFS-1100
6-9
45-55
1650
600
1100
4
AWFS-1210
8-10
75
2100
600
1210
4
AWFS-1410
10-15
90-120
2800
600
1410
4
