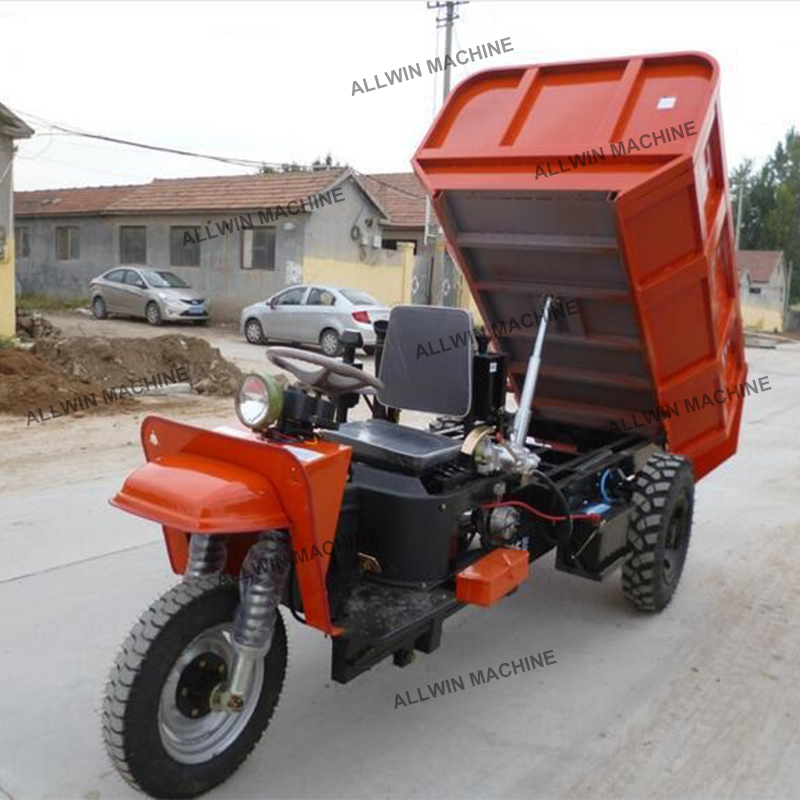

1-3 ton loading capacity mini diesel tricycle three wheels dump tricycle
This diesel tricycle has 18 horsepower (Changchai), electric start, full oil brake, dump, engineering bucket, sturdy and durable, double-layer filter type filter, and the cargo floor is made of 3mm thick iron plate. It is driven by the drive shaft di
This diesel tricycle has 18 horsepower (Changchai), electric start, full oil brake,
dump, engineering bucket, sturdy and durable, double-layer filter type filter,
and the cargo floor is made of 3mm thick iron plate.
It is driven by the drive shaft directly linked by the diesel engine and the gearbox,
and has strong climbing ability. It is suitable for all kinds of mine tunnel environments,
especially for narrow tunnels, narrow roads, and sloped working conditions.
The whole vehicle has three layers of high-quality paint, original headlights and mirrors.
High-quality multi-layer tires, with heavy beams, and thicker carriages. Easy to drive,
flexible direction, heavier chassis, no skidding.
(It can be equipped with various types of single-cylinder and multi-cylinder diesel engines, and the carriages can be customized according to the size of the roadway)
Model
8 shifts tricycle without shed
7 shifts tricycle without shed
4 shifts tricycle without shed
Overall dimension （L*W*H）
3800*1400*1500
3800*1400*1500
3700*1400*1450
2200*1350*500
2200*1350*500
2200*1350*500
Engine brand
Chang chai
Chang chai
Chang chai
Engine number
1105/1115
1105/1115
1105/1115
Engine power
13.216.2
13.216.2
13.216.2
Machine weight
980
980
980
Type of unloading
Hydraulic unloading system
Hydraulic unloading system
Hydraulic unlaoding system
Steering
Hydraulic/Mechanical
Hydraulic/Mechanical
Hydraulic/Mechanical
Number of seats
Single
Single
Single
Transmission type
Mechanical
Mechanical
Mechanical
Rear axle shaft structure
Full floading axle
Full floading axle
Semi-floating axle
Tire Dimensions (Front)
500-14
500-14
500-14
Tire Dimensions (Rear)
750-16
750-16
750-16
Battery
90
90
90
Fuel tank Capacity
13
13
13
Hopper
(Customerized available)
(Customerized available)
(Customerzied available )
