high quality vacuumm tumbler machine
Introduce: Stainless steel vacuum tumbler machine chicken vacuum marinator is in vacuum state, the use of the principle of physical impact, let the meat flip up and down in the drum, hit each other, beat, to massage, pickled effect, the meat salted e
Introduce:
Stainless steel vacuum tumbler machine chicken vacuum marinator is in vacuum state, the use
of the principle of physical impact, let the meat flip up and down in the drum, hit each other, beat,
to massage, pickled effect, the meat salted evenly meat adhesive products flexibility, tumbling,
massage can make the flesh proteins into water-soluble protein, easily absorbed, add material
(starch, etc.) and physical protein can mutually integration in order to achieve the meat is tender,
good taste, high export rate.
Effect:
1. Marinated the liquid raw meat evenly absorption
2. Enhancement of the binding force of the meat, elastic improve meat
3. Ensure that the meat slices, slice prevent crushing gap
4. Increase water retention, improve the production rate
5. Improve the suppleness and the structural stability
Model
volume（L）
Production capacity (kg/tank)
power（kw）
vacuum（kpa）
voltage（V）
Tumbling revolutions（rpm）
Host size（mm）
weight（kg）
AWGR-400
400
150-200
2.25
0.04-0.08
380
8
1550x1150x1170
480
AWGR-800
800
225-300
2.25
0.04-0.08
380
8
1750x1400x1600
520
AWGR-1200
1200
450-600
2.95
0.04-0.08
380
Variable frequency step less speed regulation
1950x1600x1850
760
AWGR-1600
1600
600-800
7.5
0.04-0.08
380
Variable frequency step less speed regulation）
2150x1230 x 2000
975
AWGR-2500
2500（Vacuum suction）
900-1200
8.75
0.04-0.08
380
Variable frequency step less speed regulation
2700x1900 x 2210
1260
AWGR-3500
3500（Vacuum suction）
1500-1800
9.5
0.04-0.08
380
Variable frequency step less speed regulation）
2950x1900 x 2200
1870

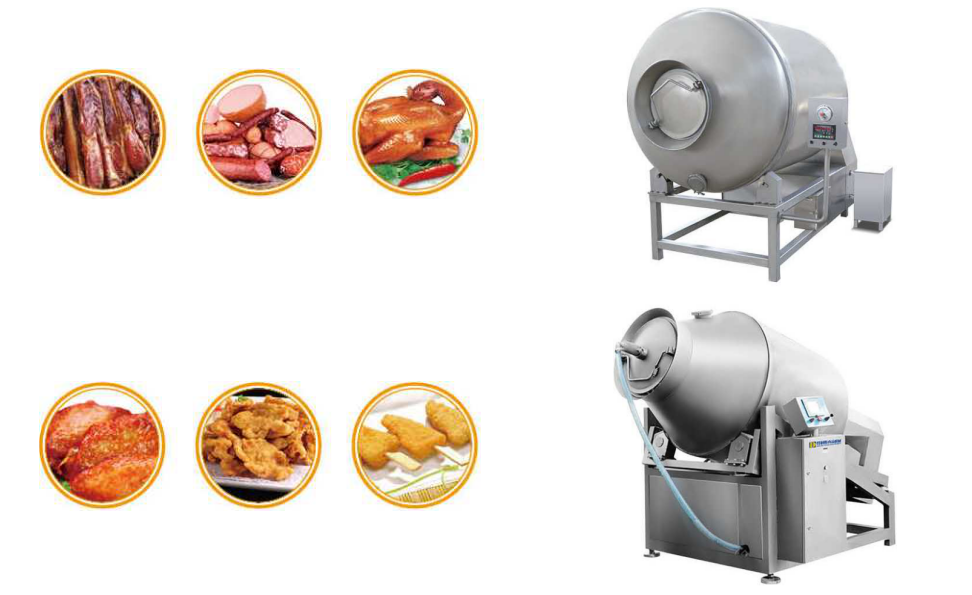

Features of Vacuum tumbler
- Be able to make the meat salted evenly to increase meat adhesive force and elasticity, better the product tastes and section effect, enhance production rate ad water retention, improving the internal structure of the product.
- Tumbling time, down time, air inflation time, working time and vacuum degree can be set according to requirement. Suction function, positive rotation and reverse rolling, can be chosen by the customer.
- Special design of the paddle, positive rotation to knead, reverse rolling to massage.
- More carrying capacity;hydraulic discharging system;designed by frequency control and trangular-vanes;suitable for many kinds products (Hydraulic Lift Vacuum Tumbler)
