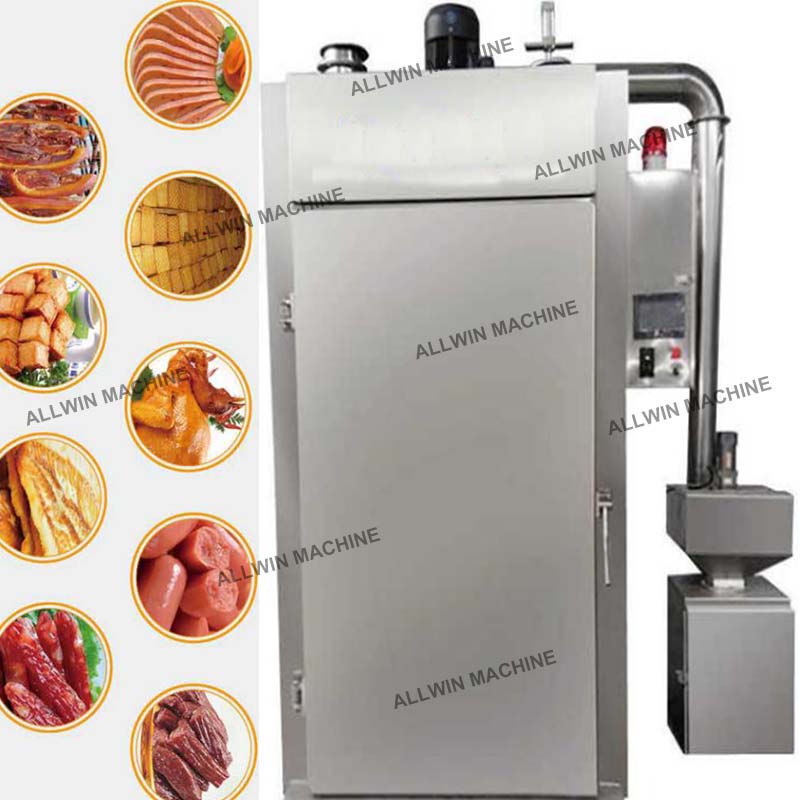

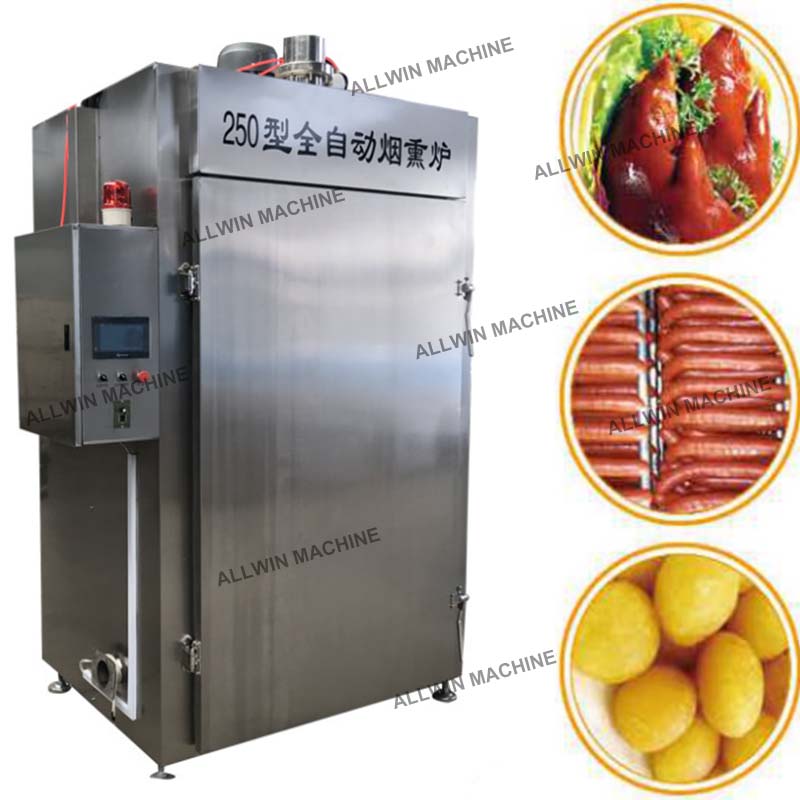

operation smoker oven for food/sausage
Equipment introduction It has the functions of cooking, drying, baking, smoking, exhausting, cleaning and so on. It adopts programmable control and large-window touch screen control to vividly and intuitively display the operating status of the equi
Equipment introduction
It has the functions of cooking, drying, baking, smoking, exhausting, cleaning and so on. It adopts
programmable control and large-window touch screen control to vividly and intuitively display the
operating status of the equipment, and can display and control process parameters such as
temperature, humidity, and time. The slow or fast cycle program can be selected according to
the process requirements to achieve the best results.
Increase the optimization of energy-saving control procedures to reduce energy consumption
Scope of application
It is suitable for all kinds of Chinese and Western meat products such as sausages, all kinds of ham,
dried sausages, sausages, roast chicken, roast duck, barbecue, etc. It is also suitable for all kinds
of luncheon meat, grilled fish slices, smoked dried tofu and other types.
Model(L)
Production capacity(KG)
dimensions(mm)
Heating method
voltage
model
Automatic
Steam generator power(kw)
size(mm)
electricity
steam
gas
Electricity heating ity
motor
Smoke generator
Awyx-30
30
1350x1000*1600
/
380V
4.8
2.2
＜3kw
Semi-Automatic
18
700 x 700x1100
Awyx-50
50
1350x1000x1800
/
380V
6
2.2
＜3kw
Semi-Automatic
18
800 x 730x1200
Awyx-50
50
1300x1000x1800
/
380V
2.2
＞3kw
Fully Automatic AutomaticAutomatic
18
800 x 730x1200
Awyx-100
100
1500x1160x2200
/
380V
24/18
3
Semi-Automatic
24
830 x 830x1350
Awyx-100
100
1500x1160 x 2200
/
380V
3
＞3kw
Fully Automatic AutomaticAutomatic
24
830 x 830x1350
Awyx-250
1 batch
1800*1560 x 2860
/
380V
36/24
4.5/5.5
＞3kw
Semi-Automatic
24
1000x1030x1960
Awyx-250
1 batch
1800x1560 x 2860
/
380V
4.5/5.5
＞3kw
Fully Automatic AutomaticAutomatic
24
1000x1030x1960
Awyx-500
2 batch
2800x1560 x 2860
/
380V
9/11
＞3kw
Fully Automatic AutomaticAutomatic
48
1000x1030x1960
Awyx-1000
Request for Quotation
