sausage meatball process use meat bowl cutter machine
Capacity: 13,000-15,000pcs/h 1.It has two motors which makes it easy to start. 2.High extruding pressure makes it good to make high void ratio hollow bricks. 3.It has a upper mixing machine which can make the clay more even to make better quality bri
The bowl cutter /chopper use the function of high speed rotary cut , make the meat loaf, meat, fat and other main materials into small meat or meat stuffing.At the same time, this machine cut other raw materials like water , borneol, auxiliary materials together into uniform emulsus. The cutting die at high speed, it can shorten the operation time, reduce material calorific value and keep natural color, elastic, filling ratio and the shelf life of products.

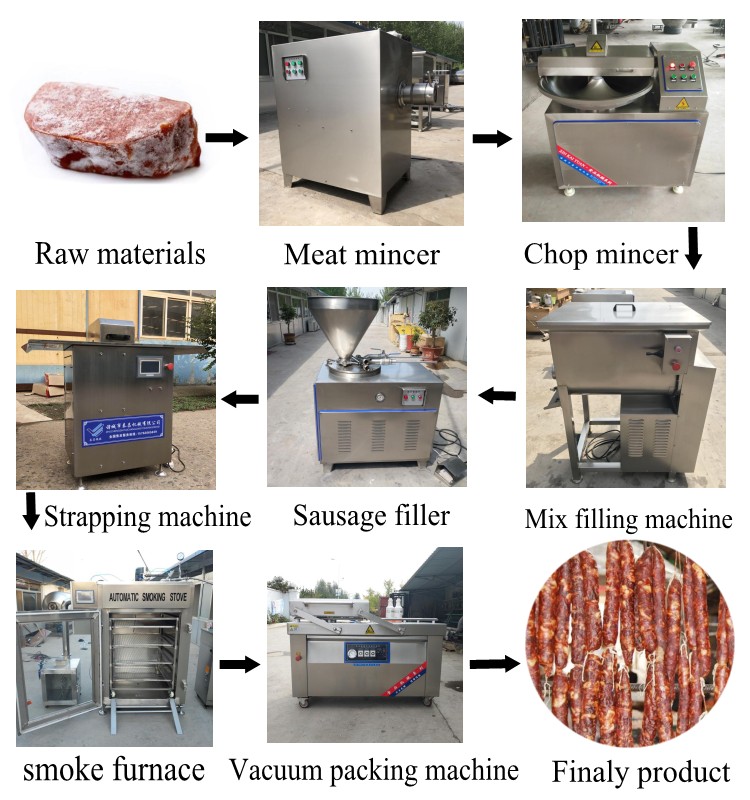

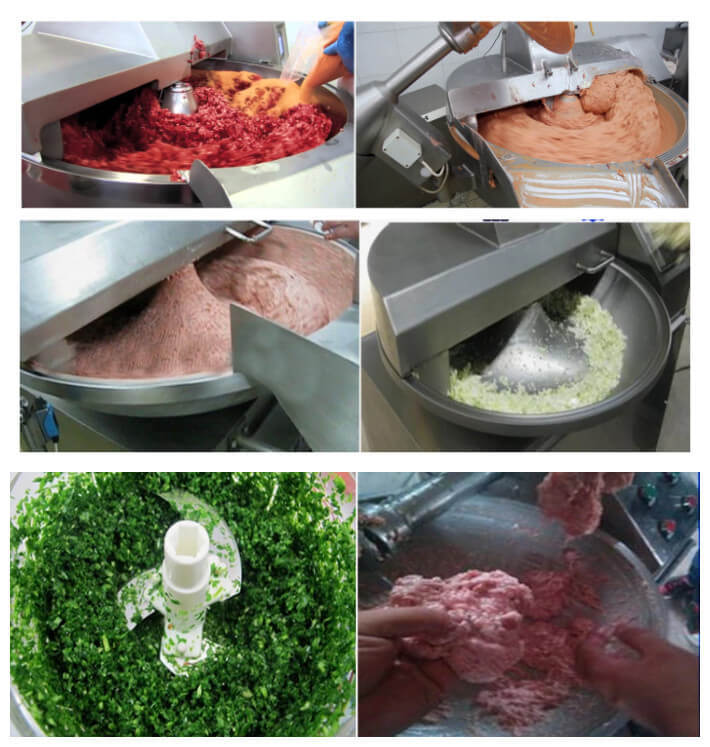

The meat bowl cutting machine is suitable for frozen meat, fresh meat and other materials. Put meat, minced meat, fat and other materials into the machine, and the chopping knife rotating at high speed will process materials into fillings or paste. Finished products are fine, sticky and of high emulsification. They can be used to make sausages, various meatballs, meat sauces, hamburger, spam, ham sausages, etc. What’s more, it can also process fish, chicken, vegetables, fruits and other materials.
The built-in CNC computer controls the speed of the cutting knife to ensure the processing accuracy. The whole machine is completely made of SUS304 food-grade stainless steel and equipped with cutting knife of 9SiCr and Swedish SKF bearings. The machine has a long service life and is durable. Optional frequency converter can be equipped to maximize the machine performance according to your needs.
technical data:
Model
capacity (kg/time)
Power
(kw)
chopped knives
Quantity
Chopping speed (r/min)
Chopping bowl speed (r/min)
Rotation speed of discharging tray (r/min)
weight
ZB-200 1
100-140
62.27
6
200/1800/3600
7.5/10
82
≈4800kg
ZB-125 I
ZB-125IK（high speed）
100-120
6
1650/3600
1800/4200
Frequency conversion stepless speed regulation
9/13
82
≈1.8T
ZB-80 I
ZB-80 II
（high speed）
60-80
6
1500/3600
1680/3450 Frequency conversion stepless speed regulation
7/16
82
≈1.45T
ZB-4Q
20-30
1500/3000
1500/3000
7/16
≈680kg
description of bowl cutter:
1. Utilize the cutter rotating with high speed to cut the meat, condiment and additive into meat paste;
2. Have the most suitable combination of the cutting speed, pot speed and the distance between the cutter and rotating pot;
3. Manufacture with stainless steel. Carefully designed with excellent moving balance. Low noises;
4. Bowl adopts good quality stainless steel, with anti-overflow pan edge. Avoid flash overflow;
5. Controller is installed separately, with waterproof and moisture protection;
6. The processed meat is of good emulsification and best quality.
