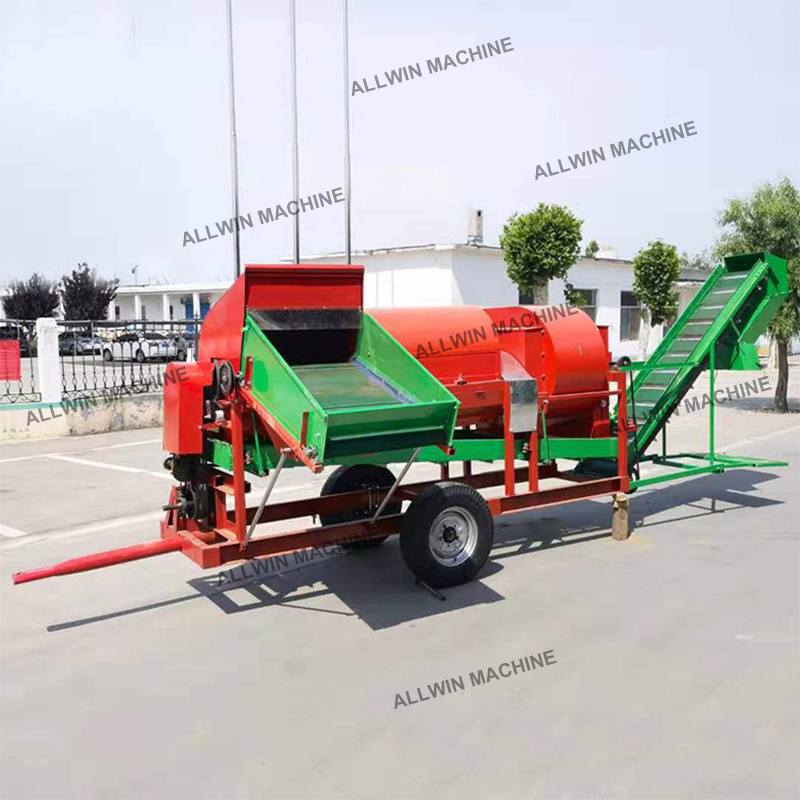

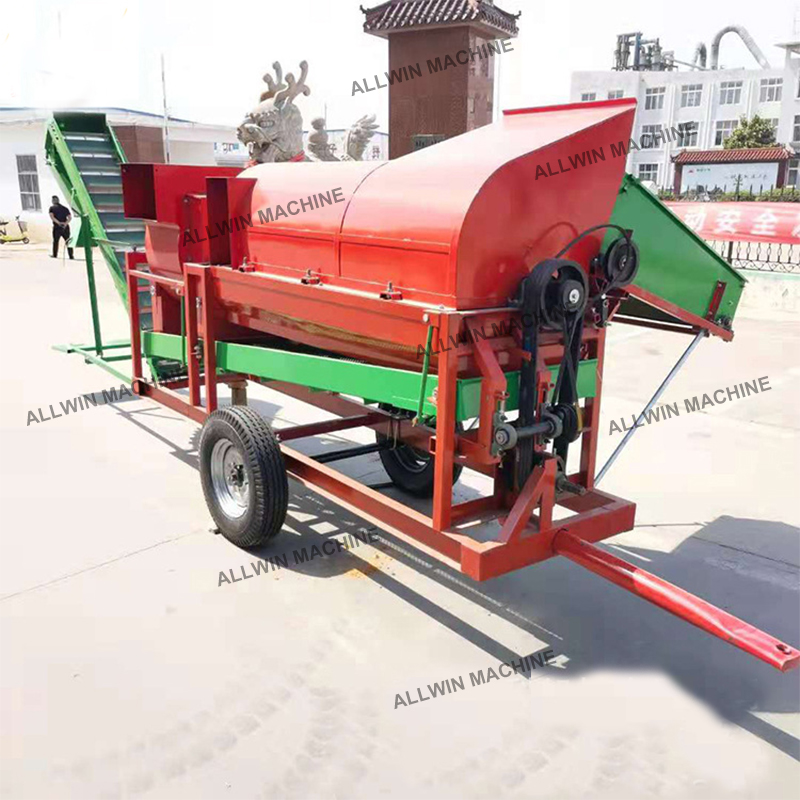

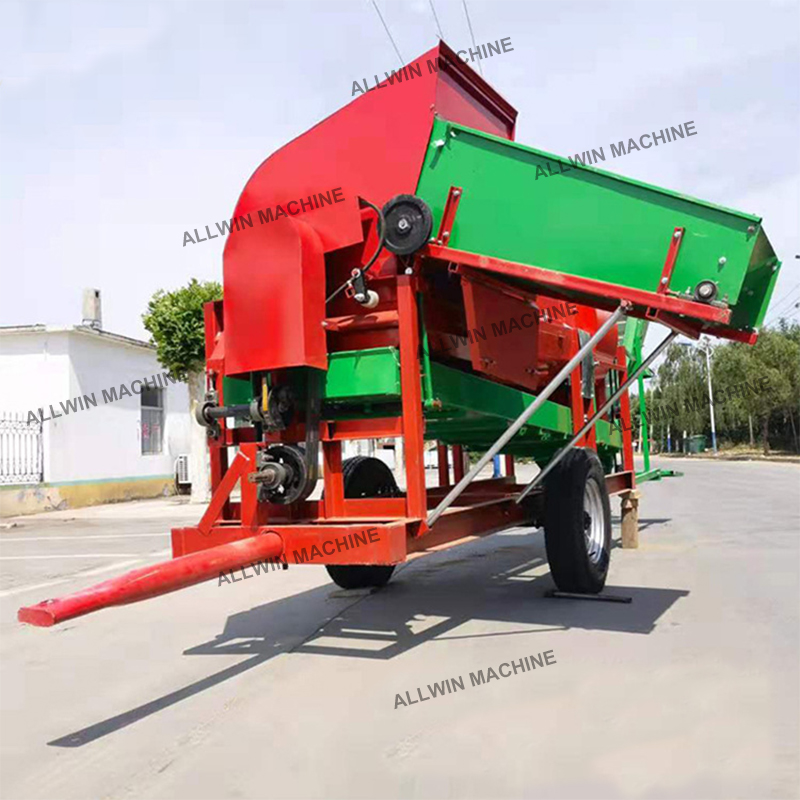

Peanut Picking Machine

1. Just throw in the seedlings directly, and the seedlings will be separated automatically.

2. Dried peanuts, fresh flowers, and fruits can be picked.

 3. With a conveyor belt, after peanuts are picked, the peanuts are automatically loaded into the bag

 through the conveyor belt, or automatically loaded into the car.

The peanut picker is used to pick fruits directly with vines after peanut harvest. It can be flexibly moved

and used in the field. The fruit picks are clean, the rate of shell breakage is low, and the loss is small.

Both dry and wet stems can be used. The work efficiency is high and the threshing is clean. It has the

 advantages of high picking rate, low crushing rate, clean cleaning, high work efficiency, reasonable

 structure of the whole machine, and convenient movement between sites. This machine is one step

closer to the development of fully mechanized fruit picking.

The peanut fruit picking machine mainly consists of a frame, a motor (diesel engine) walking tractor,

 a four-wheel tractor, a transmission part, a fruit picking part, a fan selection part, and a vibration

mechanism. During operation, the machine is driven by the electric motor or diesel engine to enter

 the fruit picking system through the feeding inlet or automatic feeding table. The drum picking rod

rotates and strikes to make the peanuts separate from the stem, and the fruit and sundries fall onto

the vibrating screen through the intaglio hole. The discharging port is discharged, and the

miscellaneous fruits scattered on the vibrating screen are passed through the vibrating screen to the

fan suction port to discharge impurities, and clean fruits are selected to complete the whole process.
