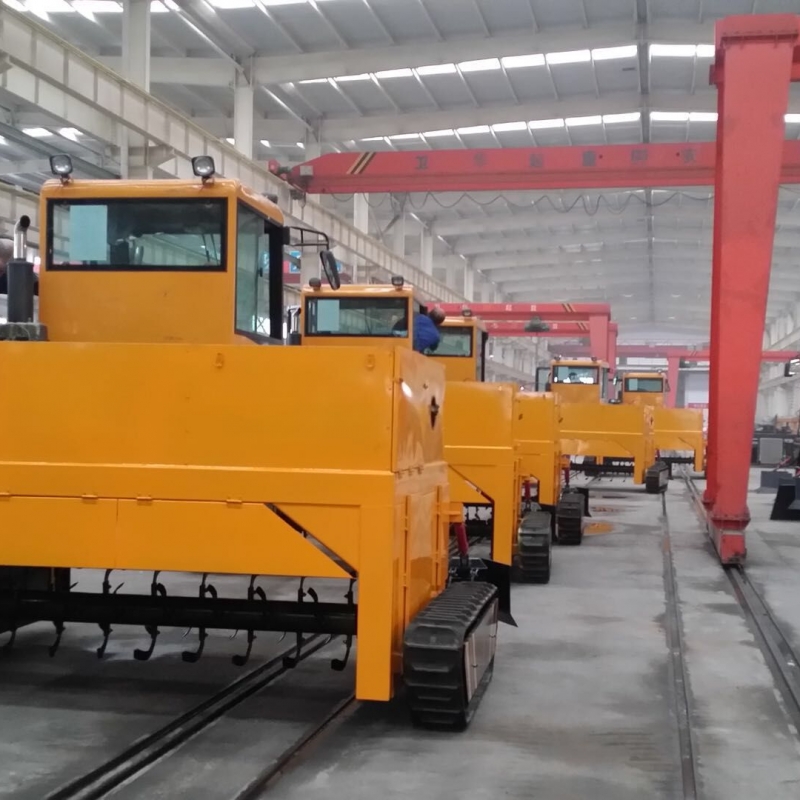

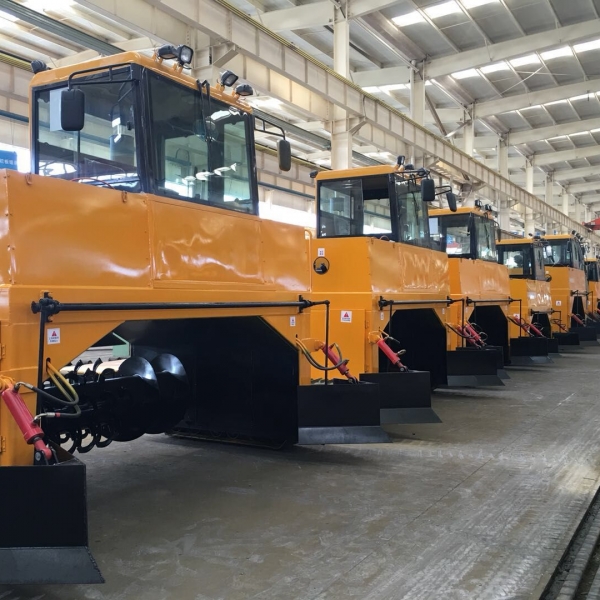

The self-propelled turning machine is the main machine in the production of bio-organic fertilizer special equipment. The machine adopts four-wheel walking design, which can advance, reverse, turn and be driven by one person. During the driving, the whole vehicle rides on the long-shaped fertilizer base piled up beforehand, and the rotating base shaft mounted under the frame is used to turn over, fluffy and transfer the fertilizer-based raw materials, and the new strip is formed after the vehicle passes. Shaped piles. You can work in an open space or in a workshop shed. A major technological breakthrough of the machine is the integration of the crushing function in the later stage of material fermentation. As the material is gradually dehydrated, the cutter shaft with the crushing device can effectively break the plate formed by the fertilizer during the fermentation process, which not only saves a pulverizer, but also greatly improves the pulverization efficiency and reduces the cost. Fundamentally solved the problem that the production volume is affected by the crushing mechanism.

technical data:

Compared with other types such as "tipping machine", "mixer", "spiral mixer", etc., the self-propelled stacker has significant features:

1) The advanced fermentation process adopts microbial aerobic fermentation, which is designed according to the principle of aerobic fermentation, so that the fermentation bacteria have the space to fully exert their functions.

2) It is more suitable for the mechanism and process requirements of microbial fermentation of poultry manure into fertilizer, and it can effectively mix viscous poultry manure with microbial preparations and straw powder. Create a better aerobic environment for the fermentation of materials. For cow dung in this loose material, the fermentation temperature can be controlled at 60-70 degrees and maintained for 3-4 days.

The whole machine has suitable power balance, low energy consumption and large output, which reduces the production cost of bio-organic fertilizer. According to the technical parameters of the machine, the small machine can mix 400-500 cubic meters of fresh cow dung per hour (equivalent to 100 people at the same time tirelessly Workload). There are 4 or 5 employees in the whole factory. Make the finished fertilizer form an obvious price advantage.3.
