animal feed electric and diesel drive grass chopper
cow farm use grass chopper for animal feed straw crusher allwin machine

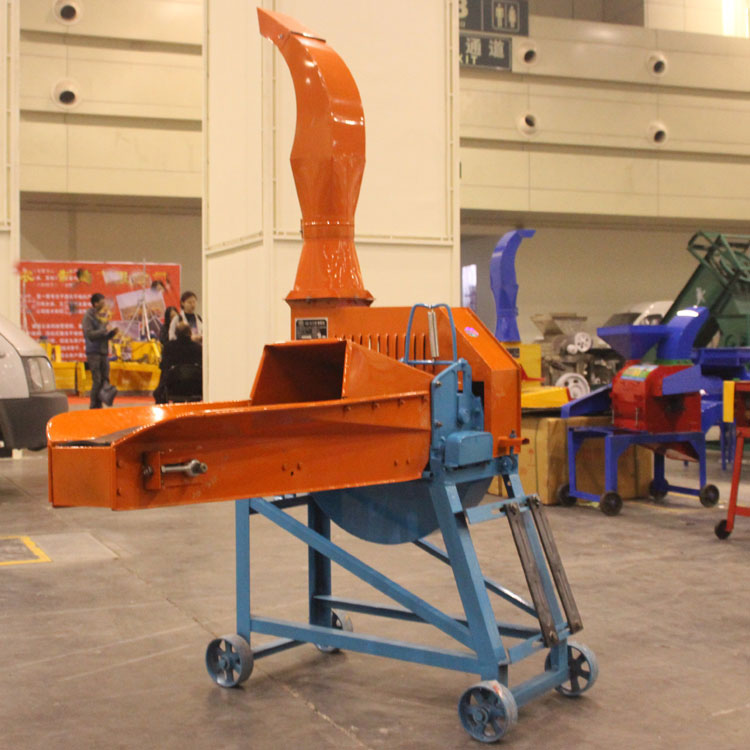

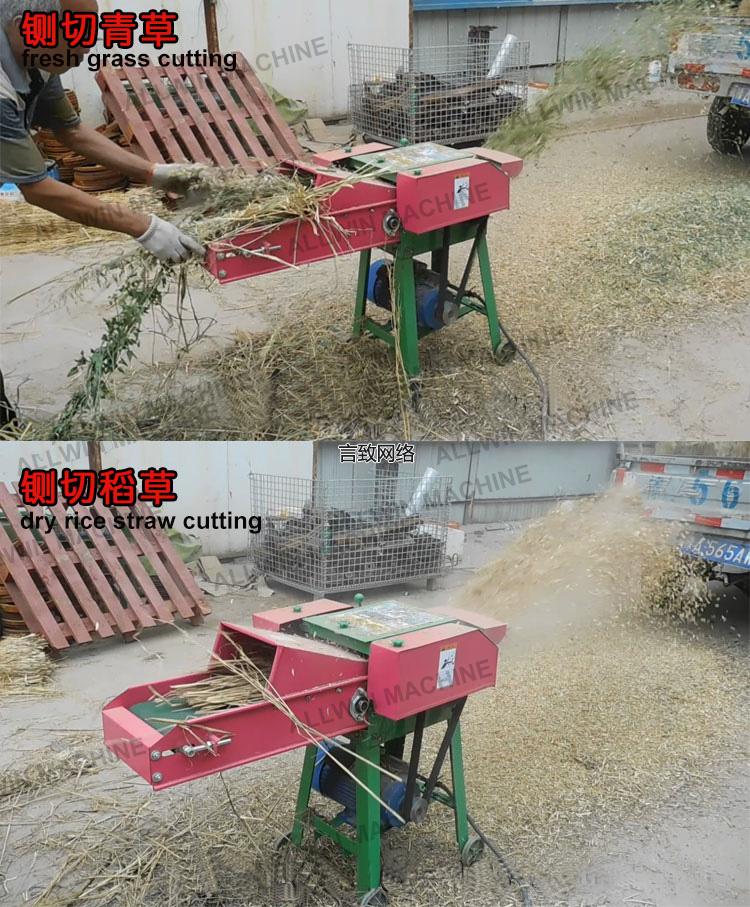

The chaff cutter is uses for processing corn straw, pasture and other crops to produce feed for
livestock breeding by cutting. The machine can be equipped with motor or diesel engine, which
has the characteristics of reasonable structure, convenient movement, automatic feeding, safety
and reliability.
Straw crusher machine by motor as a supporting power. Will power transfer to the spindle,
the other end of the main shaft gear through the gear box, universal joint, etc will pass the
speed to transfer the power of the pressure, and when to grass materials and processing in
pressure between grass pressure was holding and certain speed into cut institutions, the high
speed rotating tool cut up by the grass turned out the mouth.
technical data:
Model
AW9z-1.0
AW9z-1.5
AW9z-3.0
AW9z-5.0
AW9z-8.0
AW9z-10.0
motor
2-3hp,1phase
3-4hp,1phase
5.5hp,3phase
7.5hp,3phase
11hp,3phase
22hp,3phase
Blades
4pcs
4pcs
4pcs
4pcs
3pcs
3pcs
Capacity
0.8-1.0ton/h
0.8-1.5ton/h
2-3ton/h
4-5ton/h
6-8ton/h
8-10ton/h
Note
/
/
/
tractor -tractable
tractor -tractable
tractor -tractable
Features
1. Steel frame, small size, light weight, easy to move.
2. A variety of supporting power options, including electric motors, diesel engines and tractors,
which is especially suitable for areas lacking electricity.
3. The blade is made of high-quality materials, the machine body is thickened, and high-strength
bolts are used to make the machine more durable.
4. Added automatic feeding and returning device to effectively prevent blocking and uneven feeding.
